TJet-10 10MW Industrial Gas Turbine Multi-Fuel | Low Emission | High Reliability | Distributed Energy Solution

Free

In stock (20 available)

Write a review

---

Add to basket

Add to wish list

HERO SECTION (Above the Fold)

TJet-10 10MW Gas Turbine Power Generation System

• Rated Output: 10.6 MW

• ISO Efficiency: 34.4%

• CHP Efficiency: >90%

• NOₓ Emission: ≤ 30 mg/Nm³

• Cold Start to Full Load: < 30 Minutes

CTA Buttons:

• Get Technical Proposal

• Download Full Specification

• Request Project Quotation

1. Product Overview

TJet-10 is a 10MW-class industrial gas turbine designed for:

• Multi-fuel adaptability

• Low emissions

• High operational reliability

• Rapid deployment

It integrates optimized compressor blade design, single-crystal turbine blades, and a digital twin health monitoring system, delivering intelligent operation, simplified maintenance, and high overall energy utilization.

2. Key Advantages

🔹 Multi-Fuel Capability

Compatible with:

• Natural Gas

• Light Diesel

• Hydrogen

• Synthetic Gas

• Landfill Gas

• Dual-Fuel Configuration (Optional)

Customizable for:

• Green Ammonia

• Methanol (Customized combustion system required)

🔹 High Energy Efficiency

• ISO Electrical Efficiency: 34.4%

• Combined Heat & Power (CHP): >90%

• Exhaust Temperature: 498°C

• Supports Waste Heat Boiler / Absorption Chiller Integration

Ideal for:

• Industrial CHP plants

• Data center backup power

• Microgrid systems

• Remote energy supply

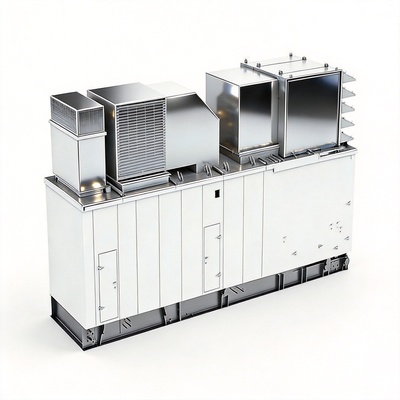

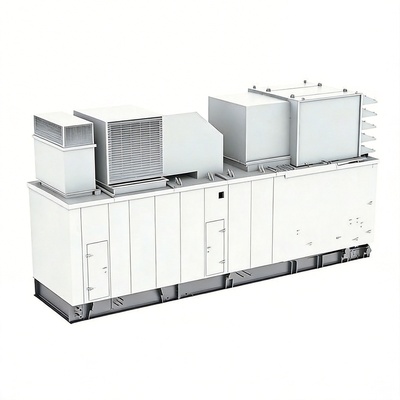

🔹 Containerized Integrated Design

• 2 × 20-ft container configuration

• Dimensions: approx. 6m × 2.4m × 5m

• Weight: approx. 28 tons (dry)

• Air cooling (no circulating cooling water required)

• Suitable for water-scarce regions

Benefits:

• Fast transportation

• Rapid installation

• Plug-and-play commissioning

3. Technical Specifications (ISO Conditions)

4. System Configuration

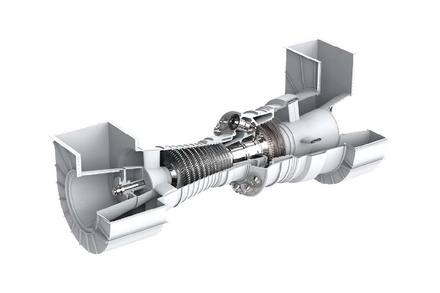

4.1 Gas Turbine Core

• Single-shaft industrial design

• 14-stage axial compressor

• Pressure ratio: 17.1

• Variable inlet guide vanes

• 3-stage axial turbine

• Dry low-emission combustion chamber

• Single-crystal turbine blades

4.2 Generator System

• Three-phase, three-wire

• Brushless excitation

• Air-cooled

• 6.3 kV / 10.5 kV options

• Insulation Class F

• Protection Class IP56

4.3 Intelligent Control System

• Industrial PLC

• HMI interface

• Generator protection cabinet

• Synchronization module

• Remote monitoring capability

• Digital twin health management

4.4 Auxiliary Systems

• Lubrication system

• Fuel treatment system

• Starting system

• Cleaning system

• Fire protection system

• MCC low-voltage system

• Generator breaker & PT cabinet

5. Monitoring & Safety System

Includes:

• Turbine & generator speed monitoring

• Vibration monitoring (turbine, gearbox, generator)

• Temperature & pressure sensors

• Acoustic monitoring

• Combustible gas detection

6. Installation & Operation

7. Compliance & Certification

International Standards:

• DNV

• ISO 8528

• ISO 9001

• ISO 14001

Emission Compliance:

• EU Stage V

• China GB 13223-2011

Industry Suitability:

• Oil & Gas

• Chemical industry

• Offshore platform

• Marine applications

• Explosion-proof & anti-corrosion requirements

8. Turnkey Package Includes

Standard Supply:

1. TJet-10 Gas Turbine Core

2. Synchronous Generator + Gearbox

3. Fuel Treatment System

4. Intake Filtration & Silencing

5. PLC + HMI Control System

6. Containerized Enclosure

Optional Add-ons:

• Waste Heat Recovery Boiler

• Absorption Chiller

• Black Start System

• Offshore corrosion-resistant version

9. Application Scenarios

✔ Distributed emergency power
✔ Industrial CHP plants
✔ Offshore platforms
✔ Biomass energy projects
✔ Marine auxiliary power
✔ Remote area self-generation
✔ Low calorific gas utilization

10. Call to Action

Power Your Project with TJet-10

• Customized fuel solution

• CHP engineering support

• Feasibility study assistance

• EPC cooperation available

Buttons:

• Contact Technical Team

• Request Quotation
